GAF Filter Bag Liquid (Bag Filter Liquid DEPURE)
Deskripsi Produk
GAF Filter Bag Liquid DEPURE adalah penyaring cairan yang umum digunakan pada berbagai mesin industri untuk menyaring partikel yang terdapat dalam produk minuman, cairan, atau minyak, dilengkapi aksesoris ring Polylock dan ring Besi/Stainless.
Filter Bag Liquid DEPURE memenuhi persyaratan media filtrasi yang ketat. Penggunaan GAF Filter Bag dapat meminimalkan waktu henti proses (downtime), mengurangi biaya pembuangan limbah, membatasi paparan pekerja terhadap cairan proses, mengurangi waktu dan biaya perawatan, serta meningkatkan kualitas produk secara keseluruhan.
Detail Produk
Seam System
- Sewn
- Welded
Material
- Polyester (PE)
- Polypropylene (PP)
- Polyamide (PA)
Ring Type
- Plastic PP Polylock
- Besi
- Stainless Steel
Micron Rating
- 1 – 150 Micron
- (1, 5, 10, 25, 50, 100, 150)
Size Filter Bag
| Size | Diameter | Panjang | Ring Type |
|---|---|---|---|
| Size #1 | 7″ (180 mm) | 32″ (810 mm) | Plastic PP / Besi / Stainless Steel |
| Size #2 | 7″ (180 mm) | 16″ (410 mm) | Plastic PP / Besi / Stainless Steel |
| Size #3 | 4″ (100 mm) | 8″ (200 mm) | Plastic PP / Besi / Stainless Steel |
| Size #4 | 4″ (100 mm) | 14″ (350 mm) | Plastic PP / Besi / Stainless Steel |
*Ukuran standar industri — tersedia juga ukuran custom sesuai kebutuhan housing filter Anda.

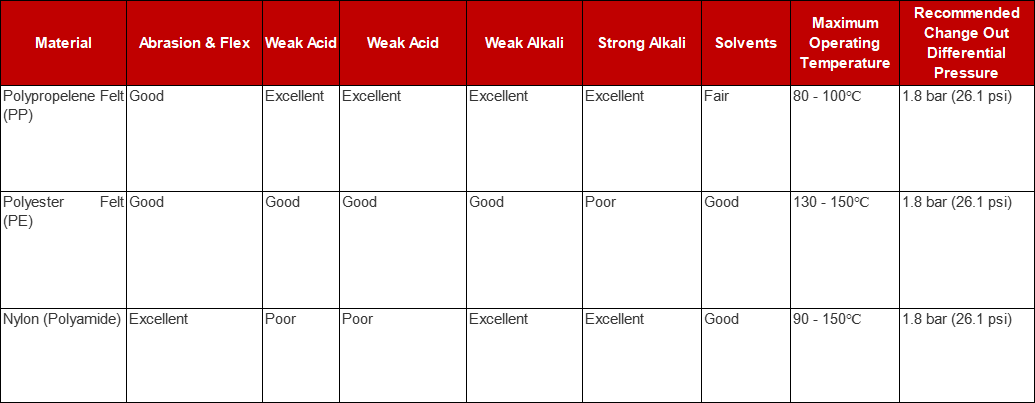

Spesifikasi Filter Bag Liquid
| Material | Abrasion & Flex | Weak Acid | Strong Acid | Weak Alkali | Strong Alkali | Solvents | Max Operating Temp. | Recommended Change Out ΔP |
|---|---|---|---|---|---|---|---|---|
| Polypropylene Felt (PP) | Good | Excellent | Excellent | Excellent | Excellent | Fair | 80–100°C | 1.8 bar (26.1 psi) |
| Polyester Felt (PE) | Good | Good | Good | Good | Poor | Good | 130–150°C | 1.8 bar (26.1 psi) |
| Nylon (Polyamide) | Excellent | Poor | Poor | Excellent | Excellent | Good | 90–150°C | 1.8 bar (26.1 psi) |

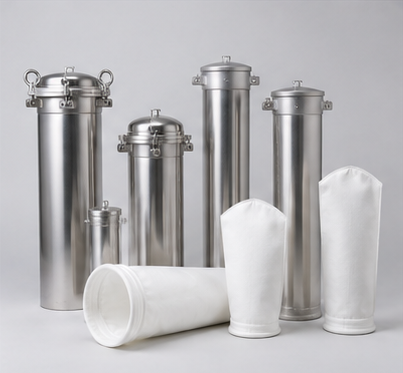

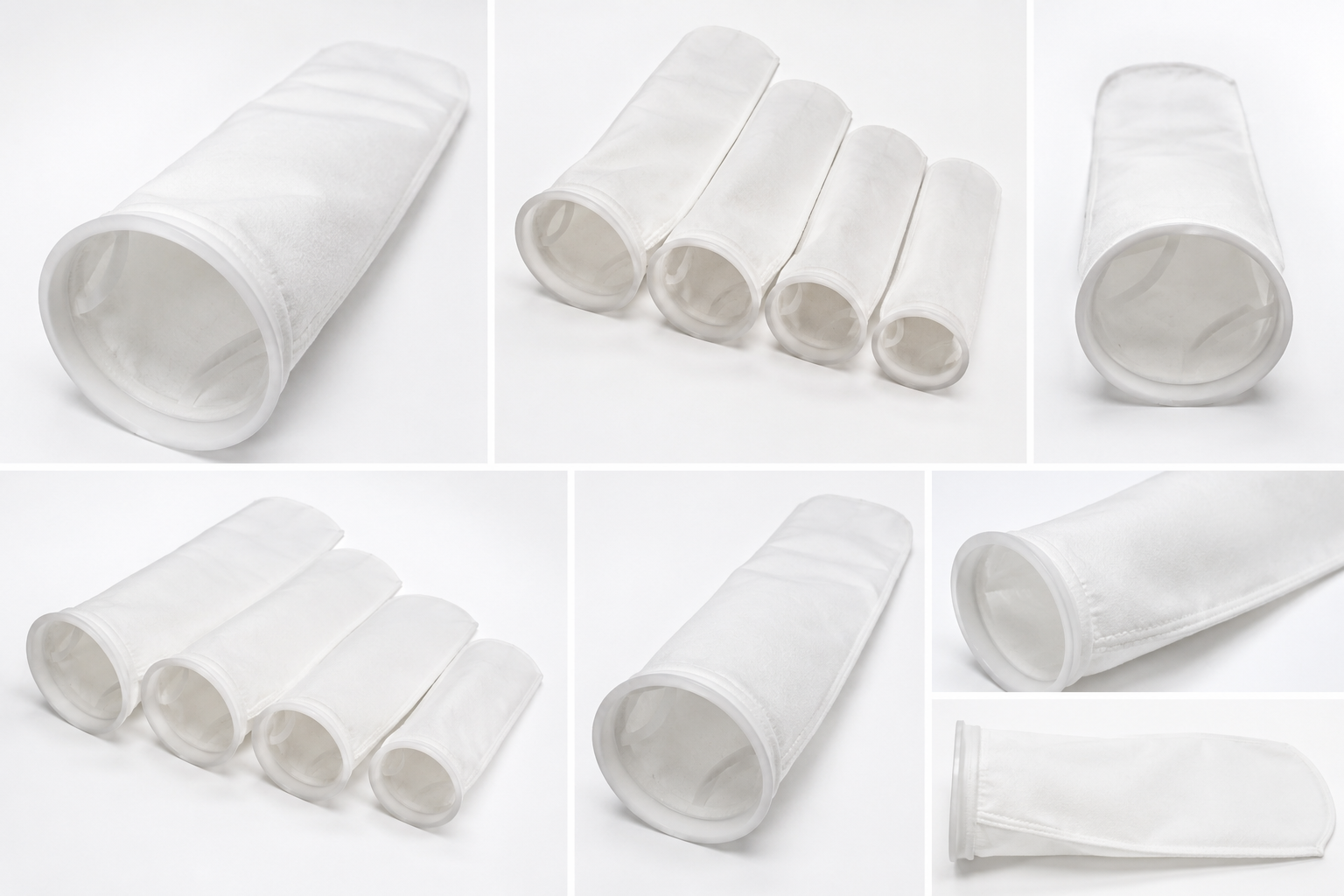

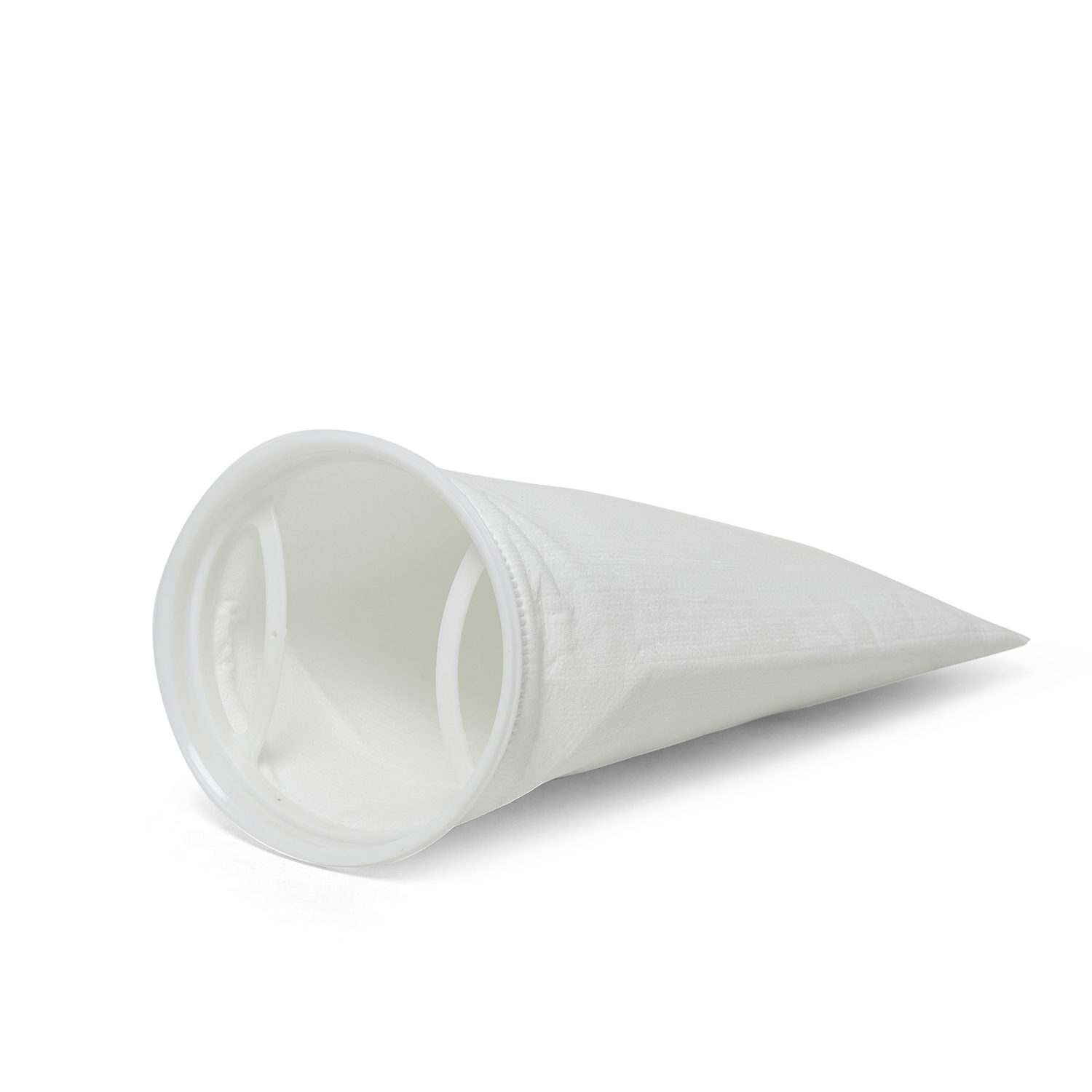

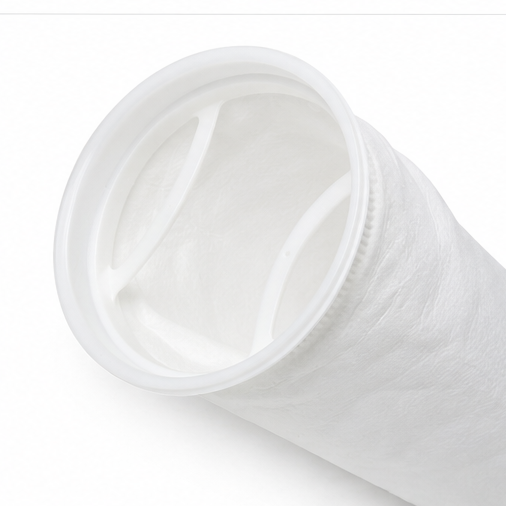

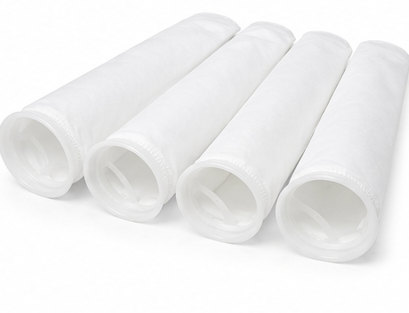

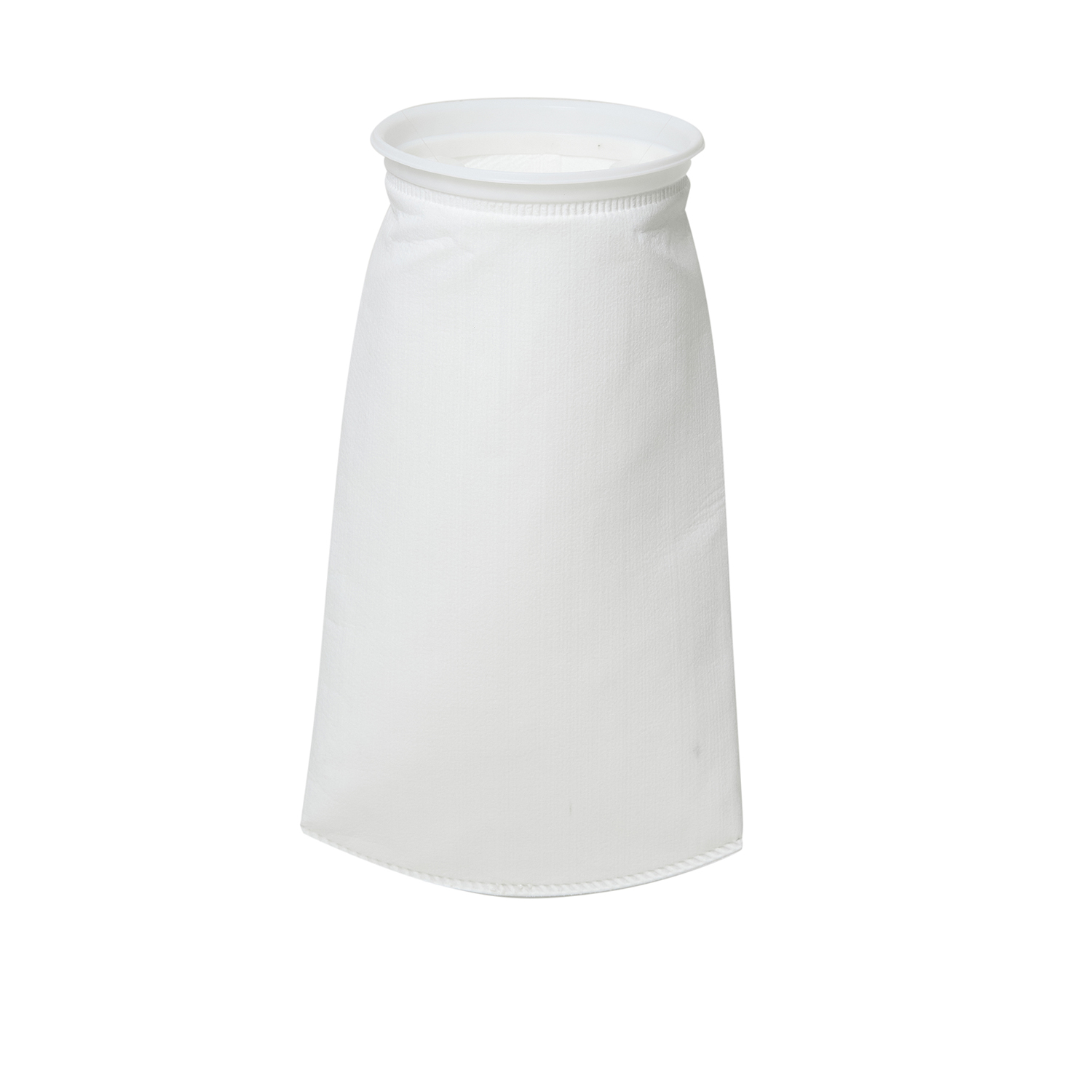

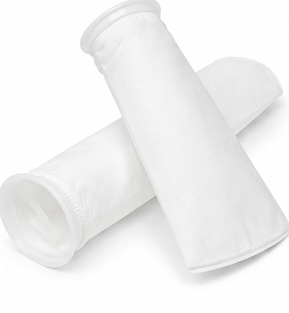

Foto Produk
